My team and I in the Nuclear and Applied Robotics Group created an augmented reality base human-robot teaming system called AugRE. The application enables users to supervise and command robotic teammates. AugRE allows for HoloLens 2 users to localize with a team of heterogenous robotics. Users are able to visualize the location of both robot and HoloLens' users in the physical world with virtual AR labels that track all agents throughout space. The framework allows for operators of the robotic team to receive various types of ROS messages that can be interperted and displayed in the users view. This project was built as a baseline for further research and development. This work has recently been accepted for publication in the 31st IEEE International Conference on Robot & Human Interactive Communication conference (Ro-MAN 2022).

The AugRE framework is composed of many components. The main component and the largest contribution of the project is the development of the HoloLens 2 application. The augmented reality application was built using Unreal Engine 4 and consisted of three main components: 1) an Unreal Engine plugin called RobofleetUnrealClient, 2) a library of ROS message structs that can be interperted by Unreal Engine, 3) the Microsoft Mixed Reality Toolkit.

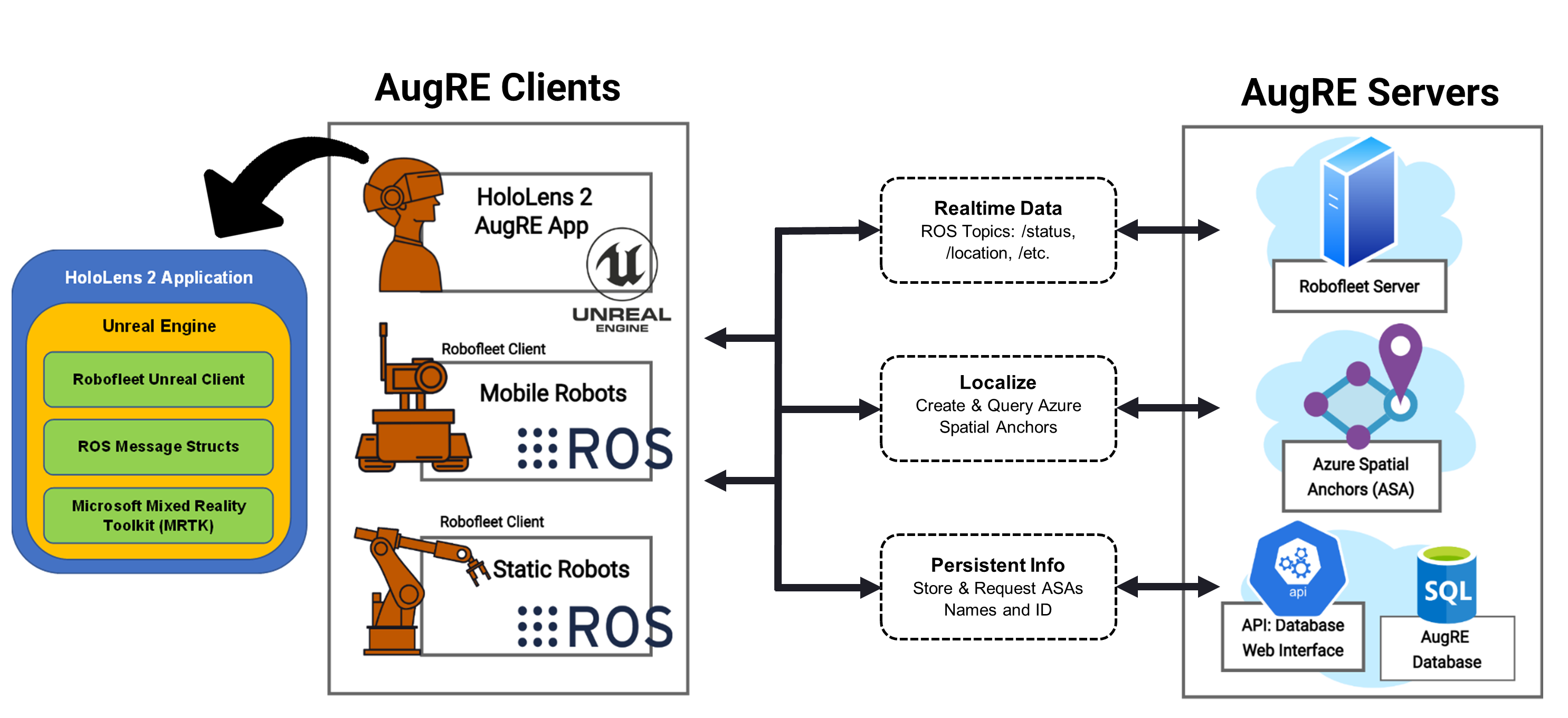

Robofleet Unreal Client is a modified Robofleet Client used to communicate seamlessly with large teams of robotic agents and other HoloLens users. Robofleet is a communication method developed recently for a scalable lightweight method of communicating with a large team of heterogenous team of robotic agents. From the image above, you can see that the HoloLens 2 users have the AugRE application downloaded to them. All the robotic agents in the AugRE team have a standard Robofleet Client installed on their system as well. With all the necessary software installed, all agents search for Azure spatial anchors, publish, and subscribe constantly to basic location and status messages across a Robofleet server for all agents to visualize and localize to each other.

Watch our presentation from the 4th Annual Sandia National Lab's XR Conference!

AugRE was built as the groundwork for much more research to come. Future work will include enhanced localizations with loop closures. It will also include better predictions from the robot for what the human will do next.
